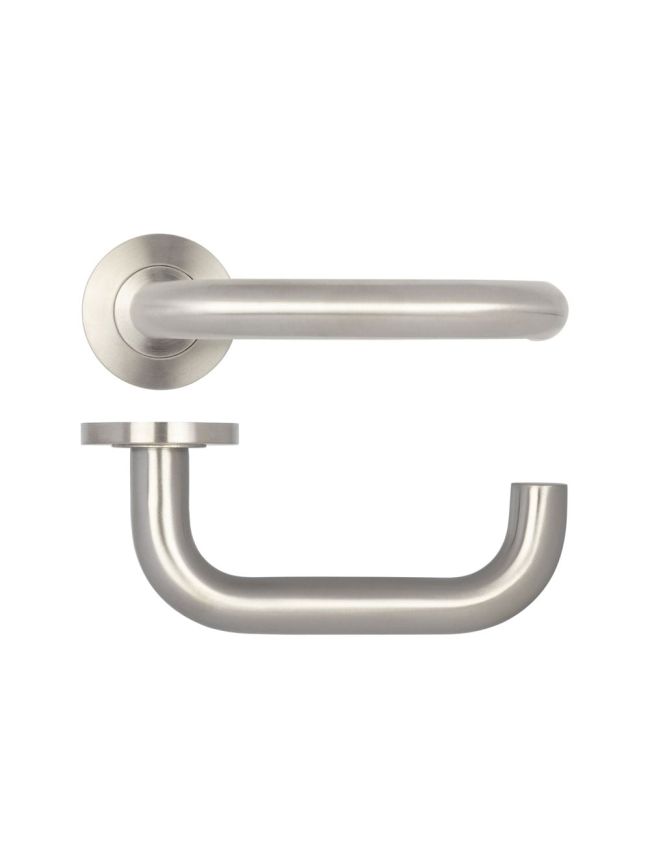

Orbit 19mm Door Handle on 8mm Sprung Rose Grade 304 Satin Stainless Steel - By Frelan Hardware - JSS13
Item Code: JSS13
Frelan Hardware is a respected name in architectural ironmongery, known for delivering high-quality, stylish hardware solutions for over 40 years. Please ask about our “VALUE FOR MONEY PROMISE” where we will beat ANY like-for-like product prices. If you think you have a better equivalent offer, please get in touch and we’ll beat it!
£6.30£5.25
Order
Total Price:£6.30£5.25
Quantity
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
- Overview
- Documentation

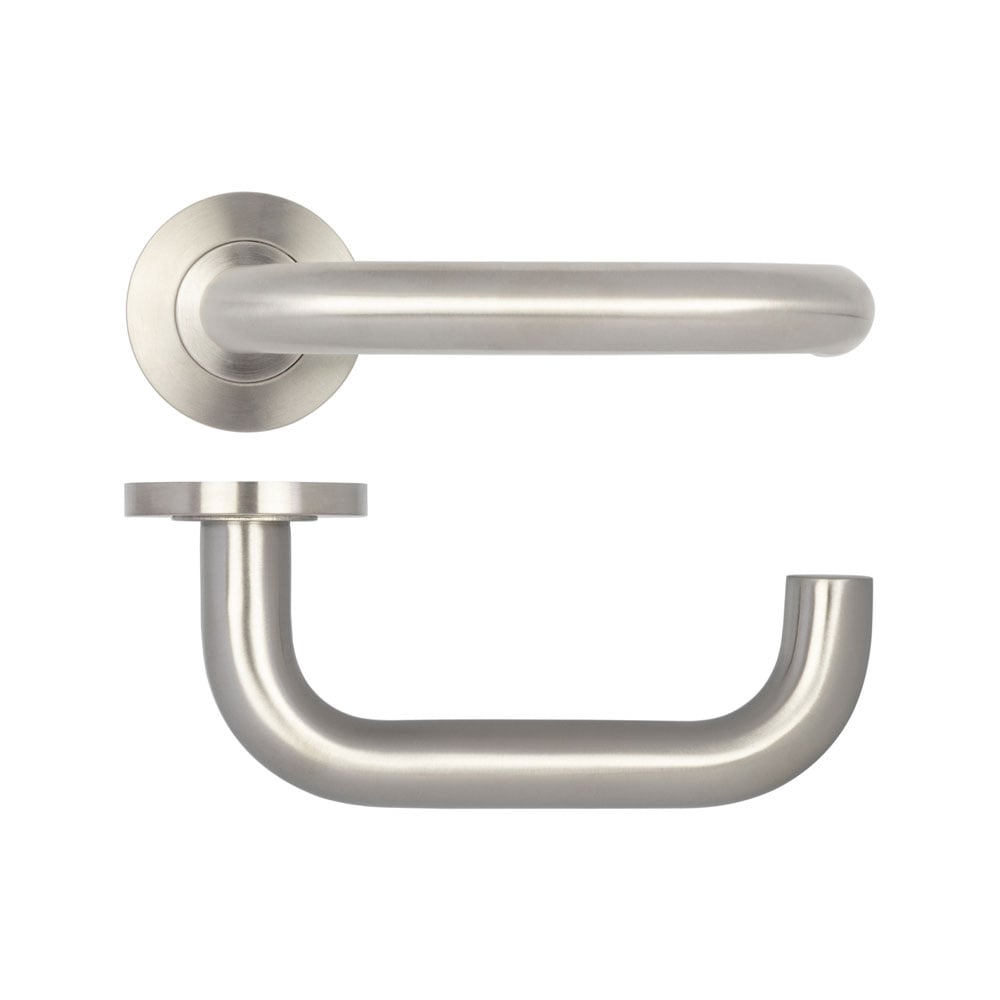

The Orbit Stainless Steel Door Handle on Rose features a contemporary 19mm tubular lever, Its D-shaped, 'return to door' design ensures a secure grip while preventing clothing from catching, offering enhanced safety and comfort. Ideal for modern interiors.
KEY FEATURES:
Material: Grade 304 Stainless Steel
Cycles Tested: 200,000
Finish: Satin Stainless Steel
Suitable Door Thickness: 44mm - 54mm
Centre Fixings: 38mm
Corrosion Resistance: Rated Grade 3
BS EN 1906 2012: Grade 3
Fire Resistance: FD 30/60
Fittings Included: Comes with everything needed for installation, including one spindle size (100mm), grub screws, JSS back-to-back fixings, and an Allen key.
Use: Suitable for internal applications across both residential and commercial settings.
Mechanical Warranty: 10 Years
STANDARDS & CERTIFICATIONS
Additional Information :
• Available Finishes : 2
• BS EN 1906 2012 : Grade 3
• Corrosion Grade : Grade 3
• Fire Rating : FD30/60
• Handle Length : 140mm
• Internal / External : Internal / External
• Material : Stainless Steel
• Material Grade : 304g Stainless Steel
• Mechanical Cycles : 200,000
• Mechanical Warranty : 10 Years
• Overall Projection : 65mm
• Overall Size : 52 x 156.50mm
• Projection : 51mm
• Rose Centres : 38mm
• Rose Diameter : 52mm
• Rose Projection : 8mm
• Suitable Door Thickness : 44-54mm
DocumentationKEY FEATURES:
Material: Grade 304 Stainless Steel
Cycles Tested: 200,000
Finish: Satin Stainless Steel
Suitable Door Thickness: 44mm - 54mm
Centre Fixings: 38mm
Corrosion Resistance: Rated Grade 3
BS EN 1906 2012: Grade 3
Fire Resistance: FD 30/60
Fittings Included: Comes with everything needed for installation, including one spindle size (100mm), grub screws, JSS back-to-back fixings, and an Allen key.
Use: Suitable for internal applications across both residential and commercial settings.
Mechanical Warranty: 10 Years
Dimensions
Lever Diameter: 19mm
Projection: 66mm
Rose Diameter: 52mm
Rose Thickness: 8mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
STANDARDS & CERTIFICATIONS
Additional Information :
• Available Finishes : 2
• BS EN 1906 2012 : Grade 3
• Corrosion Grade : Grade 3
• Fire Rating : FD30/60
• Handle Length : 140mm
• Internal / External : Internal / External
• Material : Stainless Steel
• Material Grade : 304g Stainless Steel
• Mechanical Cycles : 200,000
• Mechanical Warranty : 10 Years
• Overall Projection : 65mm
• Overall Size : 52 x 156.50mm
• Projection : 51mm
• Rose Centres : 38mm
• Rose Diameter : 52mm
• Rose Projection : 8mm
• Suitable Door Thickness : 44-54mm
