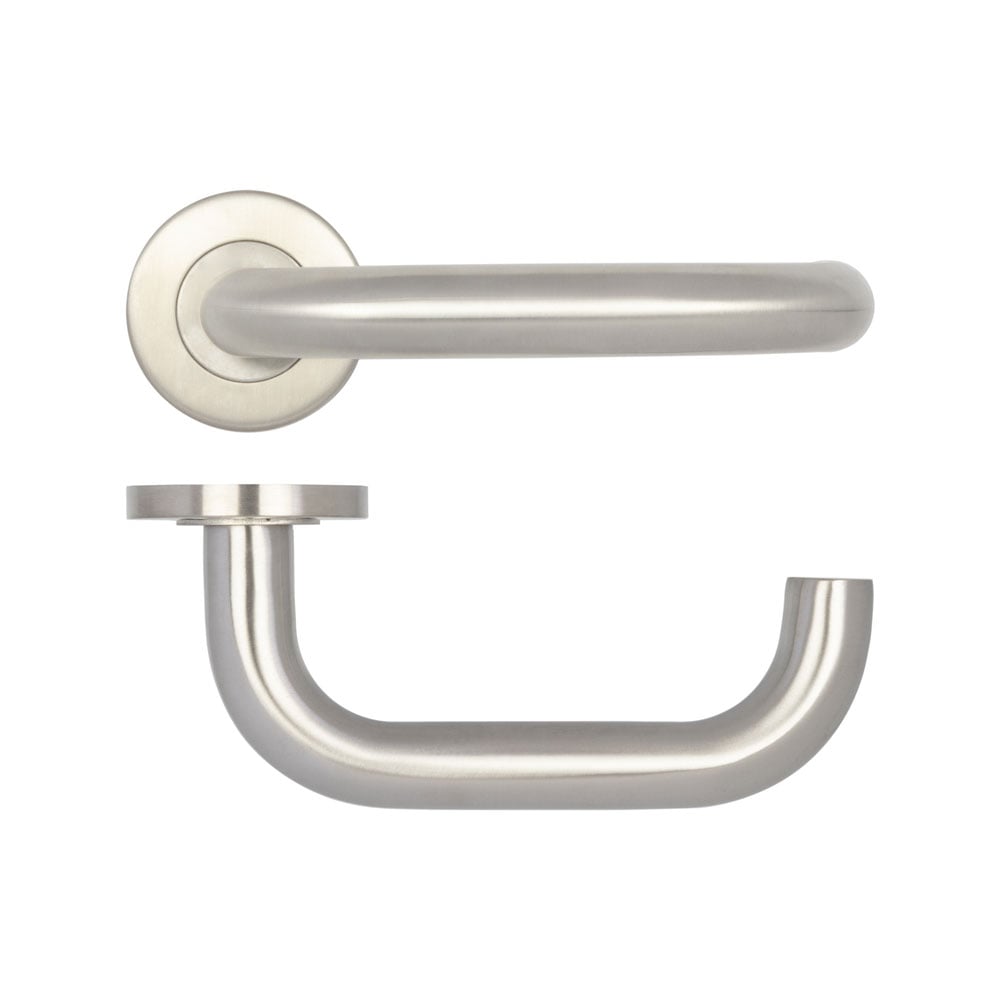

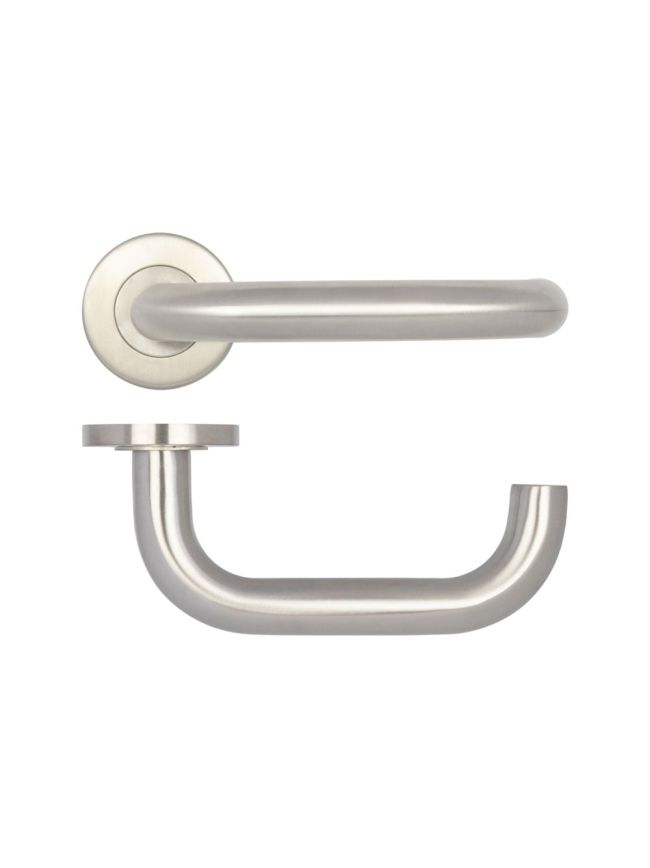

Orbit 19mm Door Handle on 8mm Sprung Rose Grade 201 Satin Stainless Steel - By Frelan Hardware - JSS202
- Overview
- Documentation
The Frelan JSS202 stainless steel door handle on rose combines a clean tubular lever design with the strength required for commercial environments. Its straight bar profile creates a contemporary look while ensuring ease of use in high-traffic settings. Crafted from high-quality stainless steel, this handle delivers lasting durability and a modern finish, making it a practical choice for offices, schools, and public buildings.
KEY FEATURES
Material Grade: 201 Stainless Steel
Finish: Satin Stainless Steel
Corrosion Grade: 4 (suitable for internal and external use)
Fire Rating: FD30/60
BS EN 1906:2012: Grade 3
BS 8300 Compliant: Yes, DDA compliant
Sprung: Yes
Use: Suitable for internal applications across both residential and commercial settings.
Fittings Included: Comes with everything needed for installation, including one spindle size (100mm), grub screws, JSS back-to-back fixings, and an Allen key.
Suitable Door Thickness: 44–54mm
Mechanical Warranty: 10 Years
Dimensions
Lever Diameter: 19mm
Projection: 66mm
Rose Diameter: 52mm
Rose Thickness: 8mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
STANDARDS & CERTIFICATIONS
Additional Information :
• Available Finishes : 1
• BS EN 1906 2012 : Grade 3
• Corrosion Grade : Grade 4
• Fire Rating : FD30/60
• Handle Length : 140mm
• Internal / External : Internal / External
• Material : Stainless Steel
• Material Grade : 201g Stainless Steel
• Mechanical Warranty : 10 Years
• Overall Projection : 65mm
• Overall Size : 52 x 156.50mm
• Projection : 45mm
• Rose Centres : 38mm
• Rose Diameter : 52mm
• Rose Projection : 8mm
• Suitable Door Thickness : 44-54mm
