Jedo Stainless Steel Grade 7 Washered Hinges 76x50mm Satin Stainless Steel - By Frelan Hardware - J9504SSS
Jedo Stainless Steel Grade 7 Washered Hinges 76x50mm Satin Stainless Steel - By Frelan Hardware - J9504SSSJedo Stainless Steel Grade 7 Washered Hinges 76x50mm Satin Stainless Steel - By Frelan Hardware - J9504SSS

Jedo Stainless Steel Grade 7 Washered Hinges 76x50mm Satin Stainless Steel - By Frelan Hardware - J9504SSS

Item Code: J9504SSS
Frelan Hardware is a respected name in architectural ironmongery, known for delivering high-quality, stylish hardware solutions for over 40 years. Please ask about our “VALUE FOR MONEY PROMISE” where we will beat ANY like-for-like product prices. If you think you have a better equivalent offer, please get in touch and we’ll beat it!
Frelan Hardware
£4.23(Inc. VAT)£3.53(Ex. VAT)
Order
Total Price:£4.23£3.53
Quantity
Add to cart
Add to wishlist
Remove from wishlist
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
  • Overview
  • Documentation
Overview

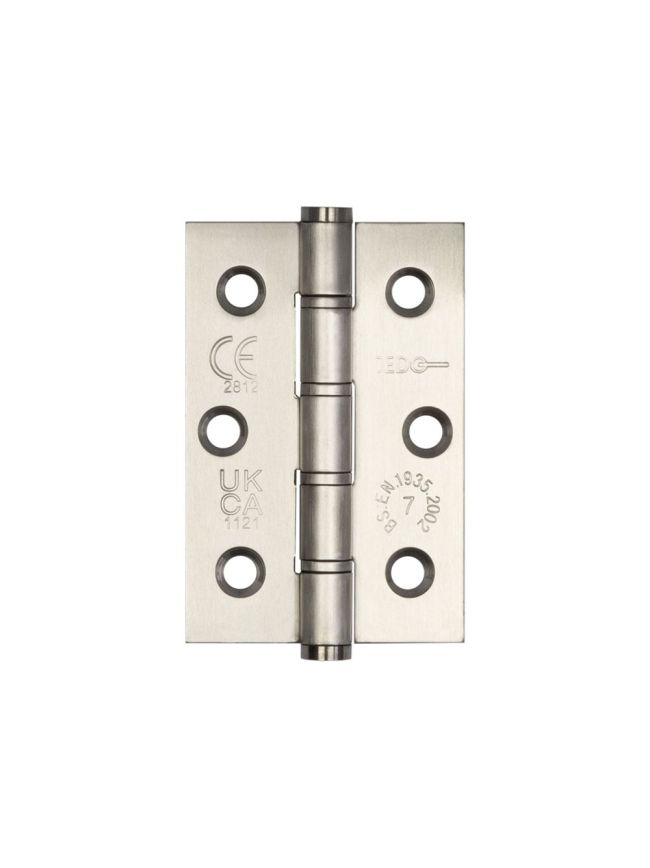

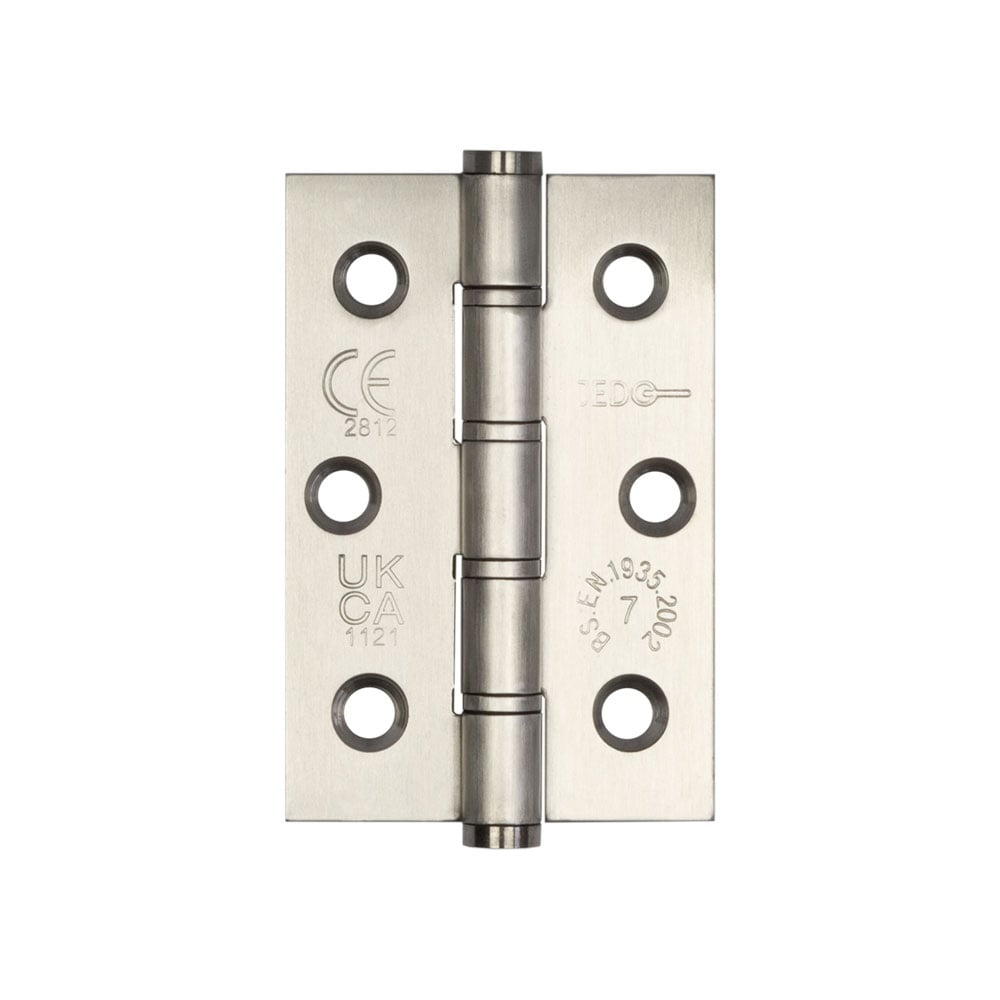

The Frelan J9504SSS Ball Bearing Hinge is a practical 76mm hinge with a compact profile for internal doors. Built from Grade 201 stainless steel with a satin finish, it is FD30 fire rated and provides durability for residential and commercial interiors.


KEY FEATURES


Type: Ball Bearing Hinge
Material Grade: 201 Stainless Steel
Finish: Satin Stainless Steel
Max Door Weight: 40kg (3 hinges)
Standards: BS EN 1935.
Fire Rating: FD30
Certifire: No
Hinge Grade: 7
Corrosion Grade: 4
Mechanical Warranty: 10 Years
Use: Internal, Residential / Commercial
UKCA / CE: Yes / Yes


DIMENSIONS


Height (H): 76mm
Width (W): 50mm
Knuckle (L): 10mm
Thickness (T): 2mm


Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.


Note: Fire-rated when used with intumescent hinge pads. Always request a sample before making modifications.



Additional Information :
• Carry Weight : Up to 40kg with 3 hinges
• CE / UKCA : BS EN 1935
• Corrosion Grade : Grade 4
• Fire Rating : FD30
• Internal / External : Internal
• Knuckle Thickness : 10mm
• Leaf Thickness : 2mm
• Material : Stainless Steel
• Material Grade : 201g Stainless Steel
• Mechanical Cycles : 200,00 Cycles
• Mechanical Warranty : 10 Years
• Overall Size : 76 x 50mm
• Size : 76x50x2mm
