Item Code: JL-HDT64SS
Frelan Hardware is a respected name in architectural ironmongery, known for delivering high-quality, stylish hardware solutions for over 40 years. Please ask about our “VALUE FOR MONEY PROMISE” where we will beat ANY like-for-like product prices. If you think you have a better equivalent offer, please get in touch and we’ll beat it!
Frelan Hardware
£4.31(Inc. VAT)£3.59(Ex. VAT)
Order
Total Price:£4.31£3.59
Quantity
Add to cart
Add to wishlist
Remove from wishlist
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
  • Overview
  • Documentation
Overview

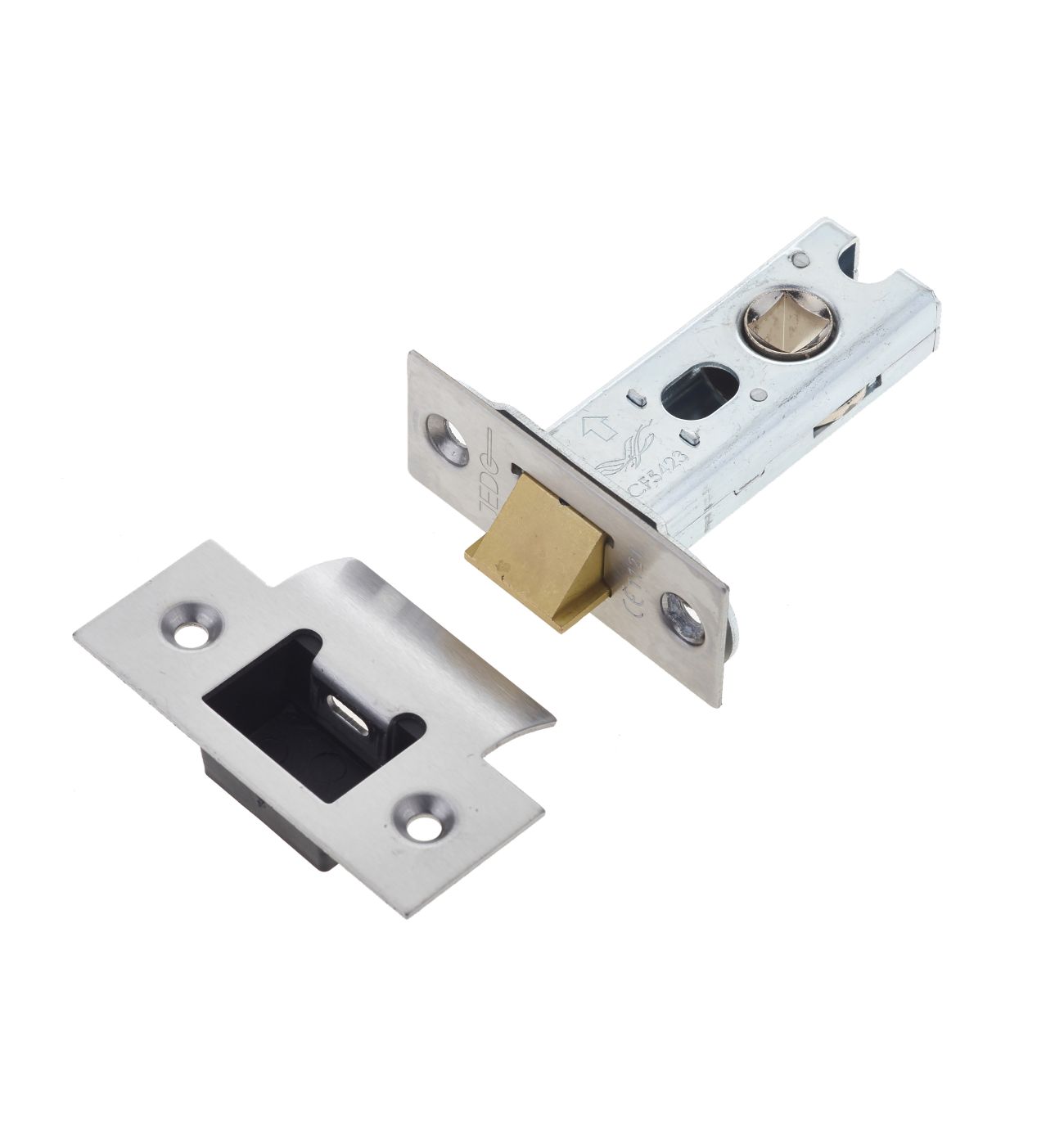

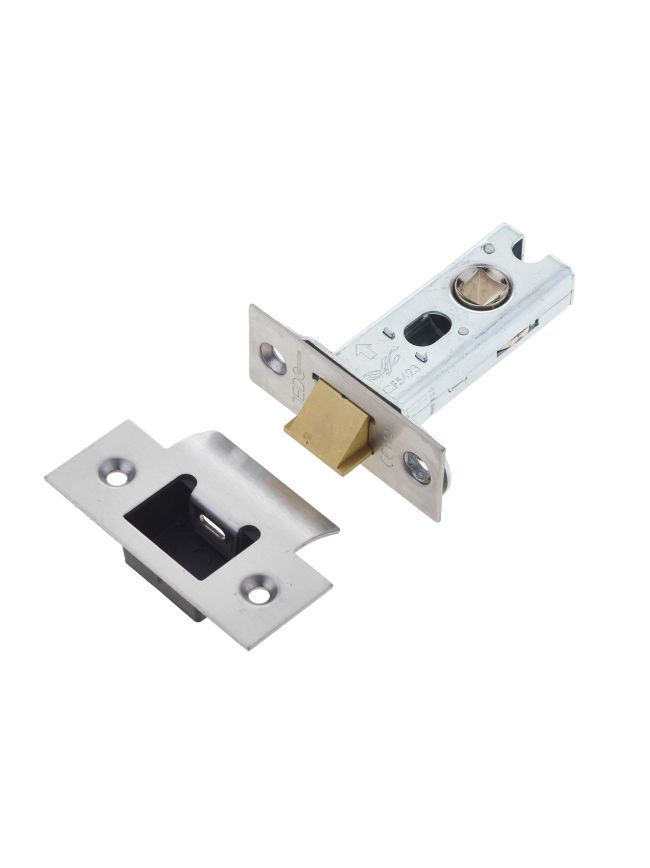

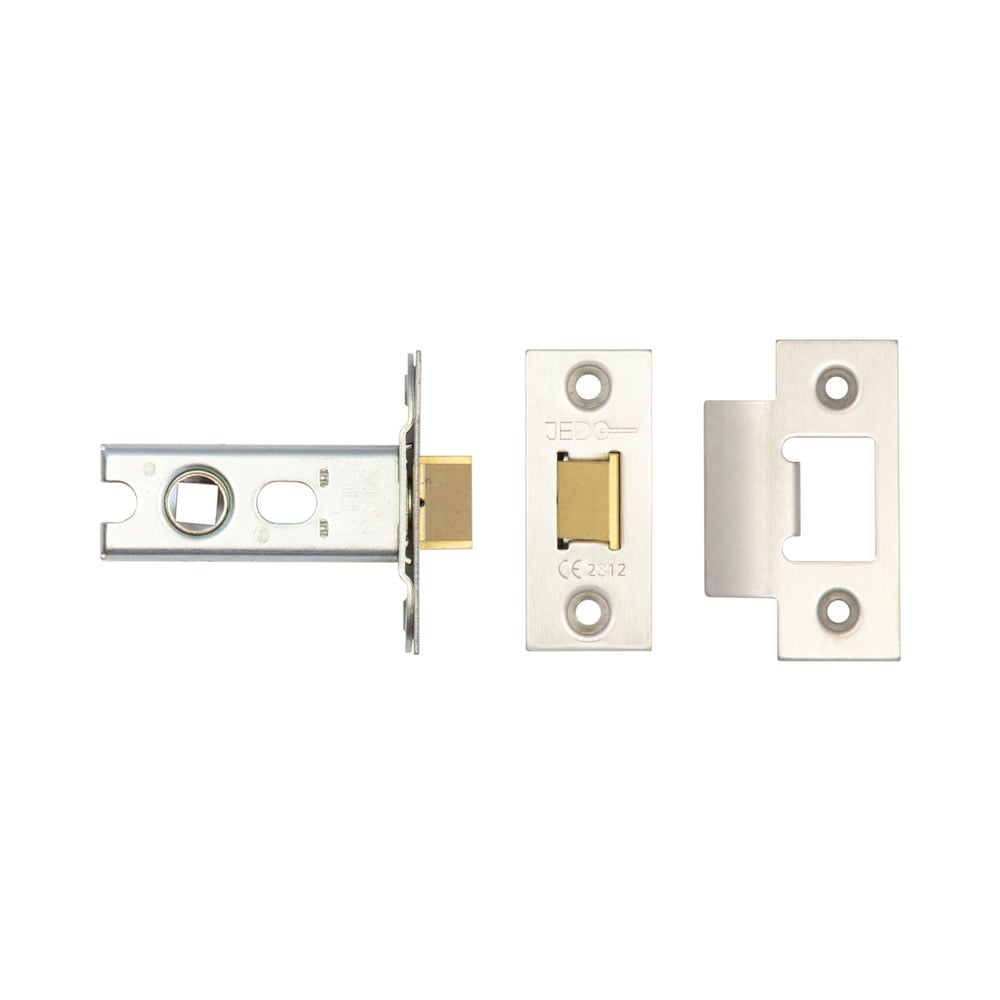

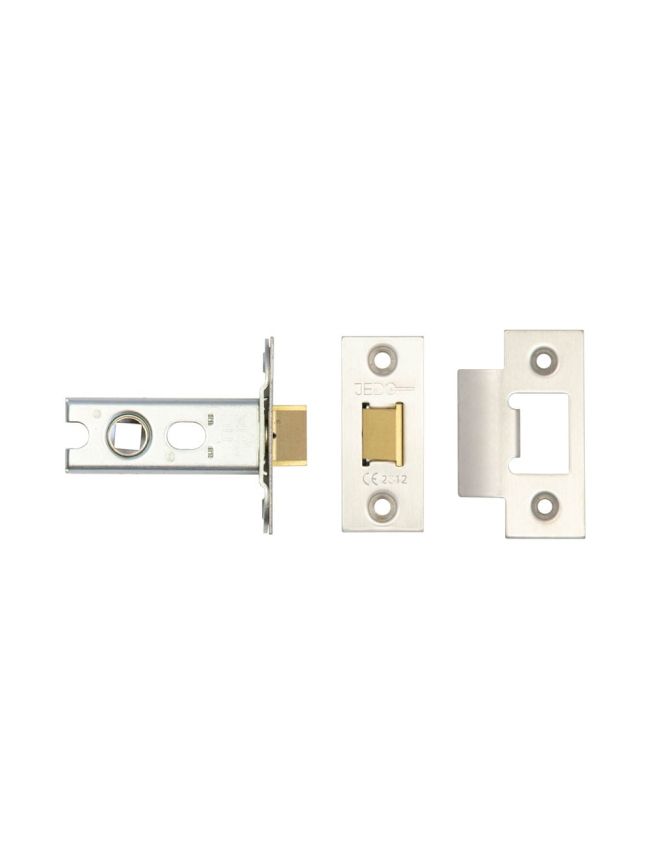

The Frelan JL-HDT64SS Heavy Duty Tubular Latch delivers a smooth, reliable action for high-traffic doors. Built from stainless components with a satin stainless steel forend (square), it’s Certifire approved and FD30/60 fire rated for commercial specifications.


KEY FEATURES


Case Type: Heavy Duty Tubular Latch
Forend: Square (SS)
Material Grade: 201 Stainless Steel
Finish: Satin Stainless Steel
Sprung: Yes
Fire Rating: FD30/60
Certifire: Yes
BS EN 12209: Yes
UKCA / CE: Yes / Yes
Corrosion Grade: 3
Mechanical Warranty: 15 Years
Use: Internal / External (Residential / Commercial)
Suitable Door Thickness: 35–54mm
Fixings: 4 x wood screws

DIMENSIONS


Case Length: 64mm
Backset (to spindle): 45mm


To maintain compliance with the fire standard for this latch,  it is recommended that you fit these with the relevant intumescent pack (GRA 16 & GRA 16.2)

Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.

STANDARDS & CERTIFICATIONS

Fire Door Rating 30/60CERTIFIREUKCACE















Additional Information :
• CE / UKCA : BS EN 12209
• Certifire : Yes
• Corrosion Grade : Grade 3
• Fire Rating : FD30/60
• Internal / External : Internal / External
• Material : Stainless Steel
• Material Grade : 304g Stainless Steel
• Mechanical Warranty : 15 Years
• Overall Size : 60 x 25mm x 64mm
• Size : 64mm
• Suitable Door Thickness : 35 - 54mm
