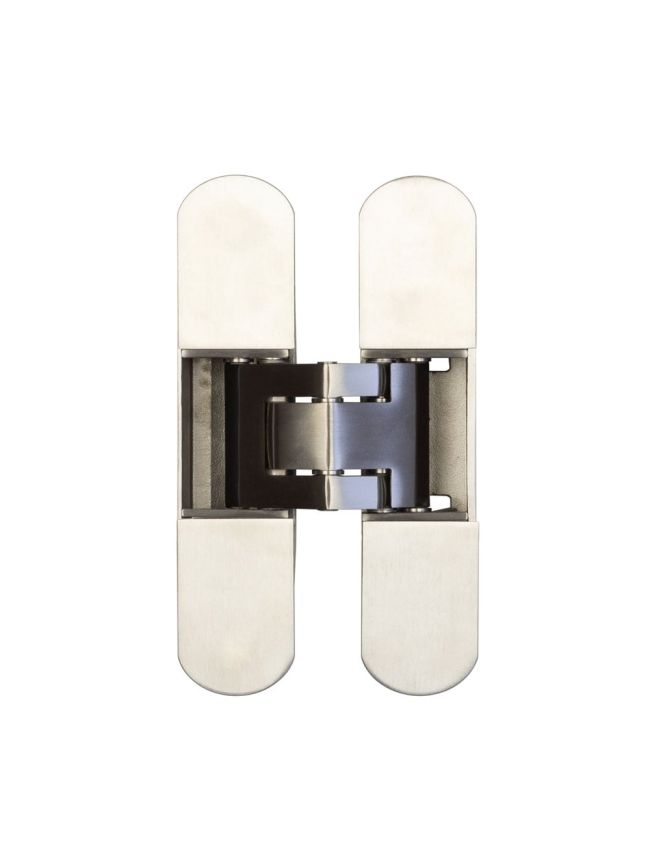

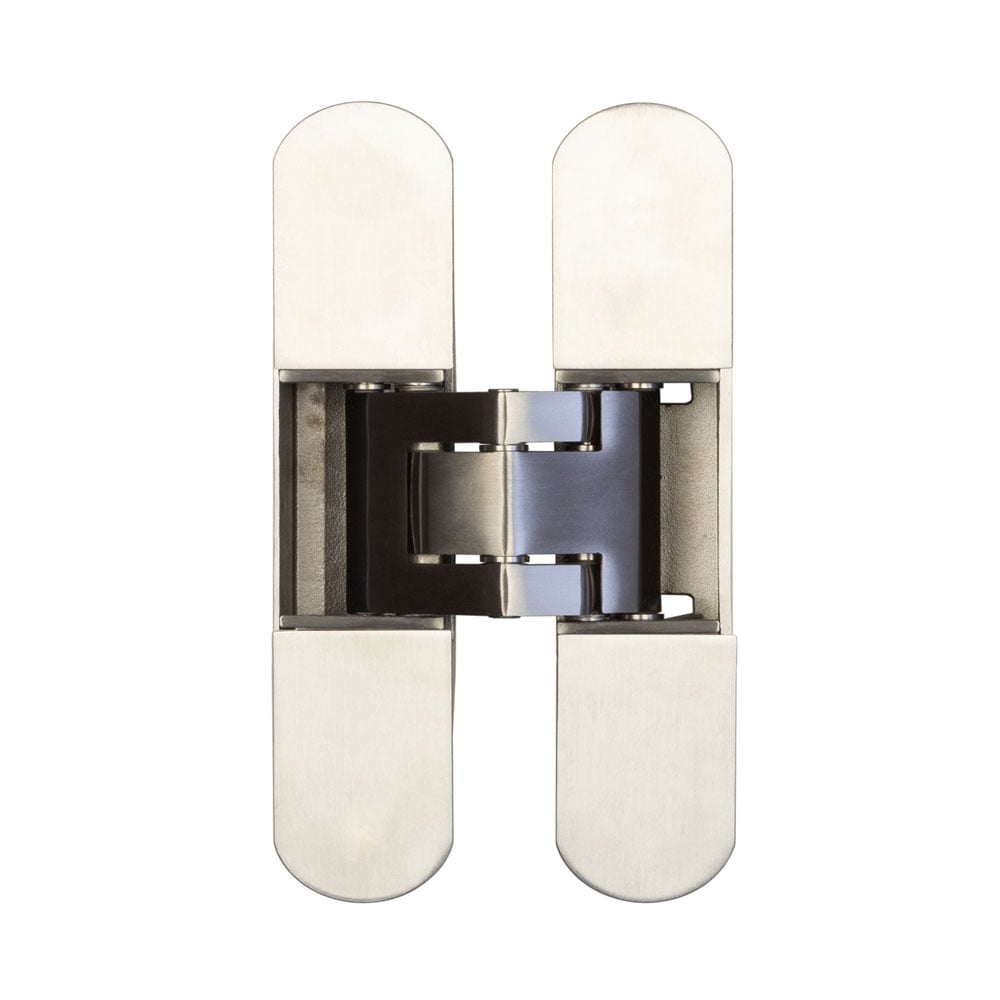

Ghost 140mm 3D Concealed Hinge Silver - By Frelan Hardware - CH60SIL

The Ghost Concealed Hinge CH60AB in Antique Brass offers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.

KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Silver
- 3D Adjustable: Height, depth and lateral movement
- Material: Zinc
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD30 w/ 1mm Graphite Flexifire (Sold Separately)
- Door Weight: Up to 60KG when using 3 hinges
- Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty: 5 Years

DIMENSIONS:
- Size: 140mm
- Overall Size: 140 x 25 x 79.5mm
- Projection: 7.5mm
- Fixing Centres: 125mm
- Thickness: 7mm
- Suitable Door Thickness: 35 – 44mm

We strongly recommend requesting a sample before committing to any cutting and drilling.

STANDARDS & CERTIFICATIONS
