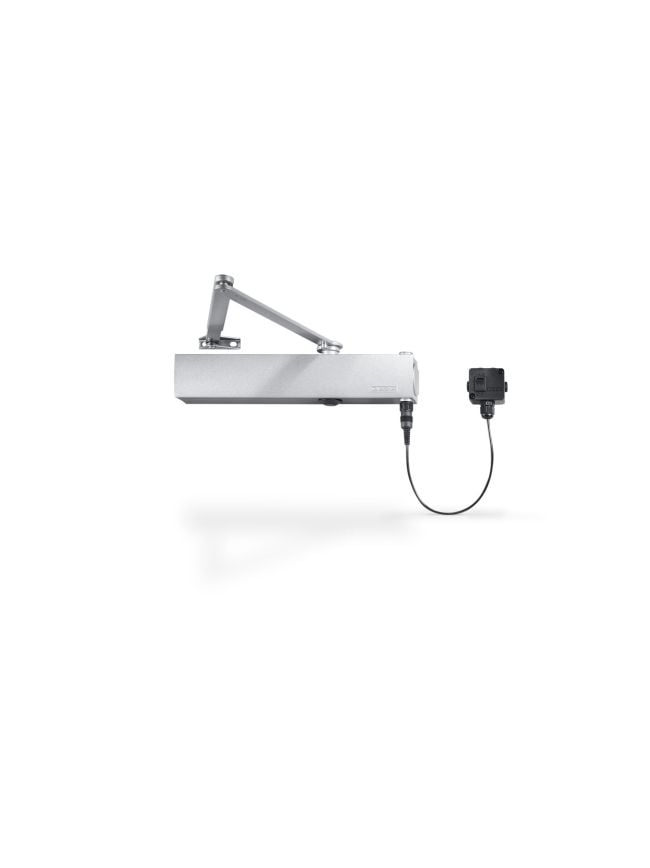

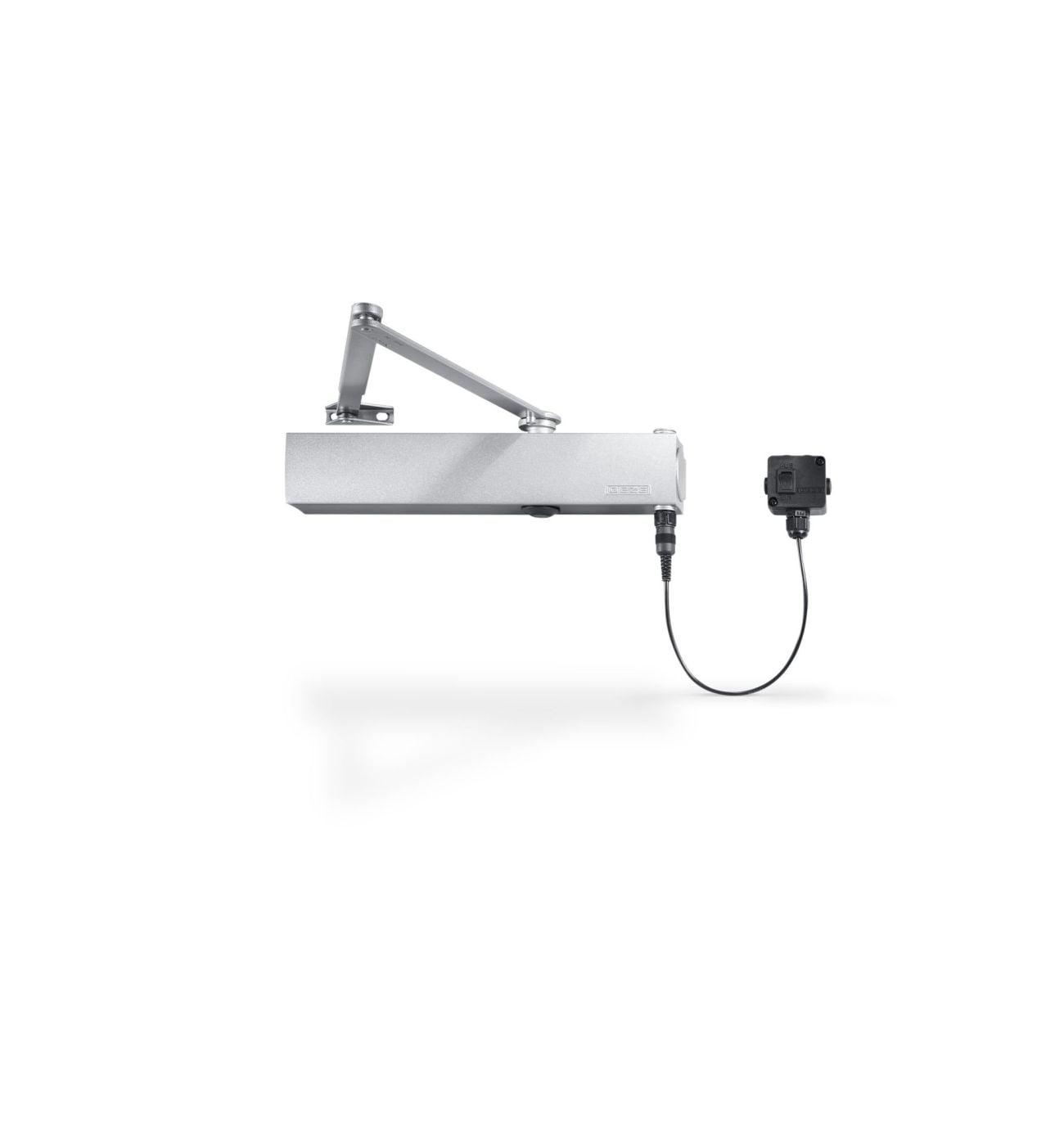

GEZE TS4000E Electromagnetic Fire Door Closer - Power Size EN 1-6 - Silver
Item Code: 124796
£168.00£140.00
Order
Total Price:£168.00£140.00
Quantity
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
- Overview
- Documentation
TS 4000 E Overhead door closer with link arm for single leaf doors of up to 1400 mm leaf width with electric hold-open device.
- Operating voltage 24 V DC
- Can be used for right and left hand doors without conversion
- Electric hold-open device with hold-open area 80°-175°
- Electric hold-open device in accordance with EN 1155 suitable for hold-open systems
- Mechanical latching action which accelerates the door shortly before the closed position
- Closing speed can be individually adjusted
- Visual closing force display for easy control of the setting
- All functions can be set from the front (except for latching action)
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
Closing force in accordance with EN 1154 | EN 1 - 6 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
Leaf width (max.) | 1400 mm |
Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side |
Opening angle (max.) | 180 ° |
Input voltage | 24 V DC |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via link arm |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open range | 80 ° - 175 ° |
