Certifire Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm Satin Stainless Steel - By Frelan Hardware - J9400SSS
Certifire Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm Satin Stainless Steel - By Frelan Hardware - J9400SSSCertifire Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm Satin Stainless Steel - By Frelan Hardware - J9400SSS

Certifire Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm Satin Stainless Steel - By Frelan Hardware - J9400SSS

Item Code: J9400SSS
Frelan Hardware is a respected name in architectural ironmongery, known for delivering high-quality, stylish hardware solutions for over 40 years. Please ask about our “VALUE FOR MONEY PROMISE” where we will beat ANY like-for-like product prices. If you think you have a better equivalent offer, please get in touch and we’ll beat it!
Frelan Hardware
£10.53(Inc. VAT)£8.78(Ex. VAT)
Order
Total Price:£10.53£8.78
Quantity
Add to cart
Add to wishlist
Remove from wishlist
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
  • Overview
  • Documentation
Overview

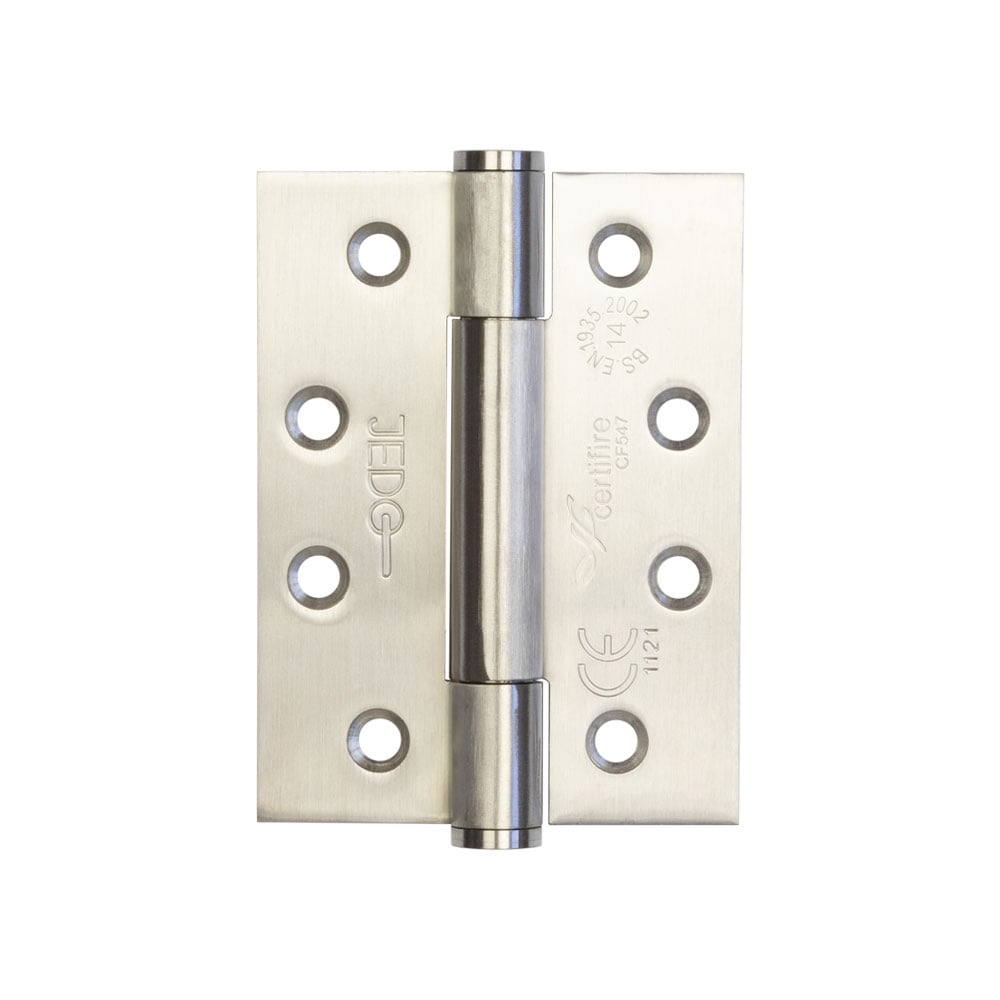

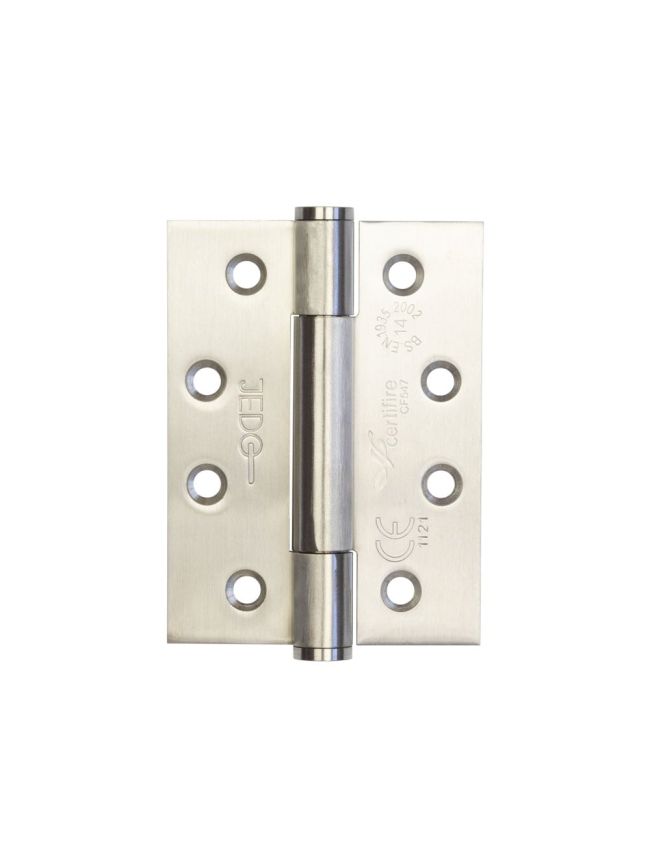

The Frelan J9400SSS Concealed Bearing Hinge is a heavy-duty hinge designed for demanding internal doors, supporting up to 160kg using three hinges. Manufactured from Grade 201 stainless steel with a satin stainless steel finish, it offers FD30/60 fire rating and Certifire approval, making it ideal for commercial installations.


KEY FEATURES


Type: Concealed Bearing Hinge
Material Grade: 201 Stainless Steel
Finish: Satin Stainless Steel
Max Door Weight: 160kg (3 hinges)
Hinge Grade: 14
Corrosion Grade: 4
Standards: BS EN 1935
Mechanical Warranty: 10 Years
Certifire: Yes
Fire Rating: FD30/60
Use: Internal, Residential / Commercial


DIMENSIONS


Height (H): 102mm
Width (W): 76mm
Knuckle: 14.5mm
Thickness: 3mm


Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.


STANDARDS & CERTIFICATIONS
UKCA CertificationCE CertificationGRADE 14 CertificateFire Door 30 60 CertificationCertifire Certificate


Note: Fire tested when used with intumescent hinge pads. We recommend requesting a sample before any modifications.



Additional Information :
• Carry Weight : Up to 160kg with 3 hinges
• CE / UKCA : BS EN 1935
• Certifire : Yes
• Corrosion Grade : Grade 4
• Fire Rating : FD30/60
• Internal / External : Internal
• Leaf Thickness : 3mm
• Material : Stainless Steel
• Material Grade : 201g Stainless Steel
• Mechanical Cycles : 200,00 Cycles
• Overall Size : 107.50 x 76mm
• Size : 102x76x3mm
