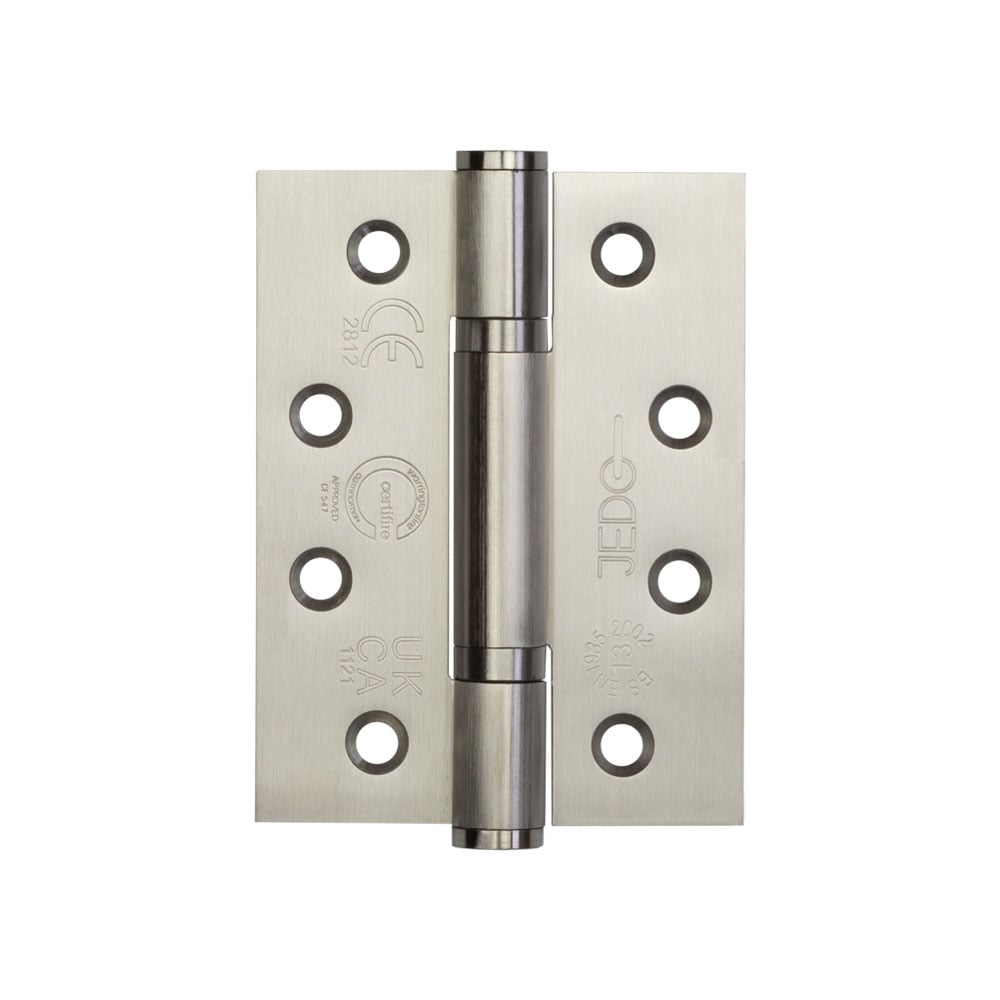

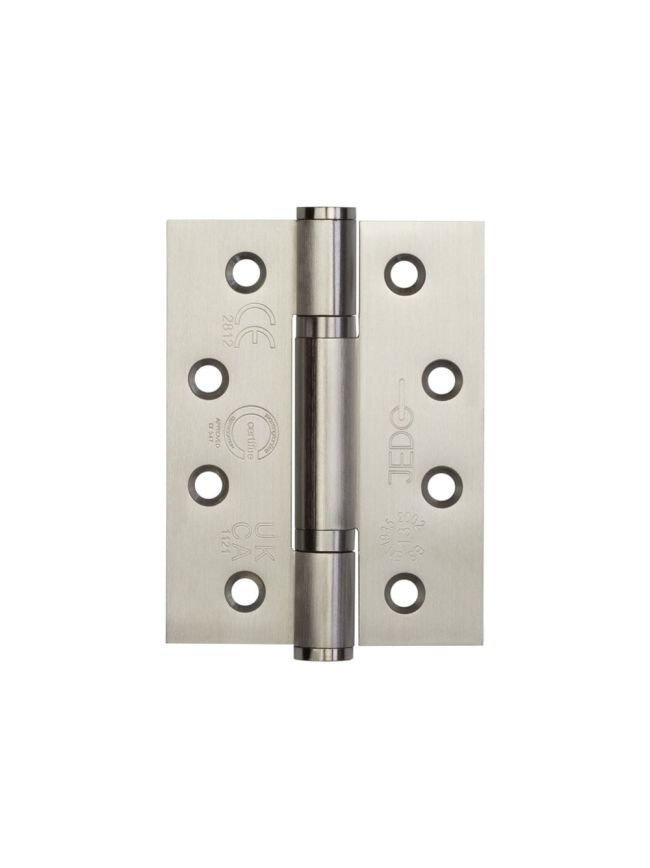

Certifire Stainless Steel Grade 13 Polymer Bearing Hinge 3 Knuckle Satin Stainless Steel - By Frelan Hardware - J9603SSS
Certifire Stainless Steel Grade 13 Polymer Bearing Hinge 3 Knuckle Satin Stainless Steel - By Frelan Hardware - J9603SSSCertifire Stainless Steel Grade 13 Polymer Bearing Hinge 3 Knuckle Satin Stainless Steel - By Frelan Hardware - J9603SSS

Certifire Stainless Steel Grade 13 Polymer Bearing Hinge 3 Knuckle Satin Stainless Steel - By Frelan Hardware - J9603SSS

Item Code: J9603SSS
Frelan Hardware is a respected name in architectural ironmongery, known for delivering high-quality, stylish hardware solutions for over 40 years. Please ask about our “VALUE FOR MONEY PROMISE” where we will beat ANY like-for-like product prices. If you think you have a better equivalent offer, please get in touch and we’ll beat it!
Frelan Hardware
£6.47(Inc. VAT)£5.39(Ex. VAT)
Order
Total Price:£6.47£5.39
Quantity
Add to cart
Add to wishlist
Remove from wishlist
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
  • Overview
  • Documentation
Overview

The Certifire Stainless Steel Grade 13 Polymer Bearing Hinge in Satin Brass combines premium functionality with an elegant aesthetic. Engineered for high-traffic doors, its polymer bearing system ensures a long lifespan while complying with fire safety regulations.


KEY FEATURES


Material: Stainless Steel
Finish: Satin Brass
Design: Three Knuckle Polymer Bearing Hinge
Grade: Grade 13 (suitable for demanding applications)
Function: Polymer bearing system for friction reduction and smooth performance
Size: 102mm x 76mm x 3mm
Fire Resistance: FD30/60 fire-rated when installed with intumescent hinge pads (GRA 1 & GRA 1.2)
Certifications: UKCA & CE certified, Certifire approved
Application: Ideal for commercial and residential fire-rated doors

STANDARDS & CERTIFICATIONS
UKCA CertificationCE CertificationGRADE 13 CertificateFire Door 30 60 CertificationCertifire Certificate
Note: To maintain compliance with fire standards, it is recommended to fit these hinges with the relevant intumescent pack (GRA 1 & GRA 1.2). We recommend requesting a sample before installation.



Additional Information :
• Carry Weight : Up to 120kg with 3 hinges
• CE / UKCA : BS EN 1935
• Certifire : Yes
• Corrosion Grade : Grade 4
• Fire Rating : FD30/60
• Internal / External : Internal
• Knuckle Thickness : 14.50mm
• Leaf Thickness : 3mm
• Material : Stainless Steel
• Material Grade : 201g Stainless Steel
• Mechanical Cycles : 200,00 Cycles
• Mechanical Warranty : 10 Years
• Overall Size : 102 x 76mm
