Certifire Stainless Steel 316g Grade 13 Ball Bearing Hinges 102x76x3mm Satin Stainless Steel - By Frelan Hardware - J9507SSS

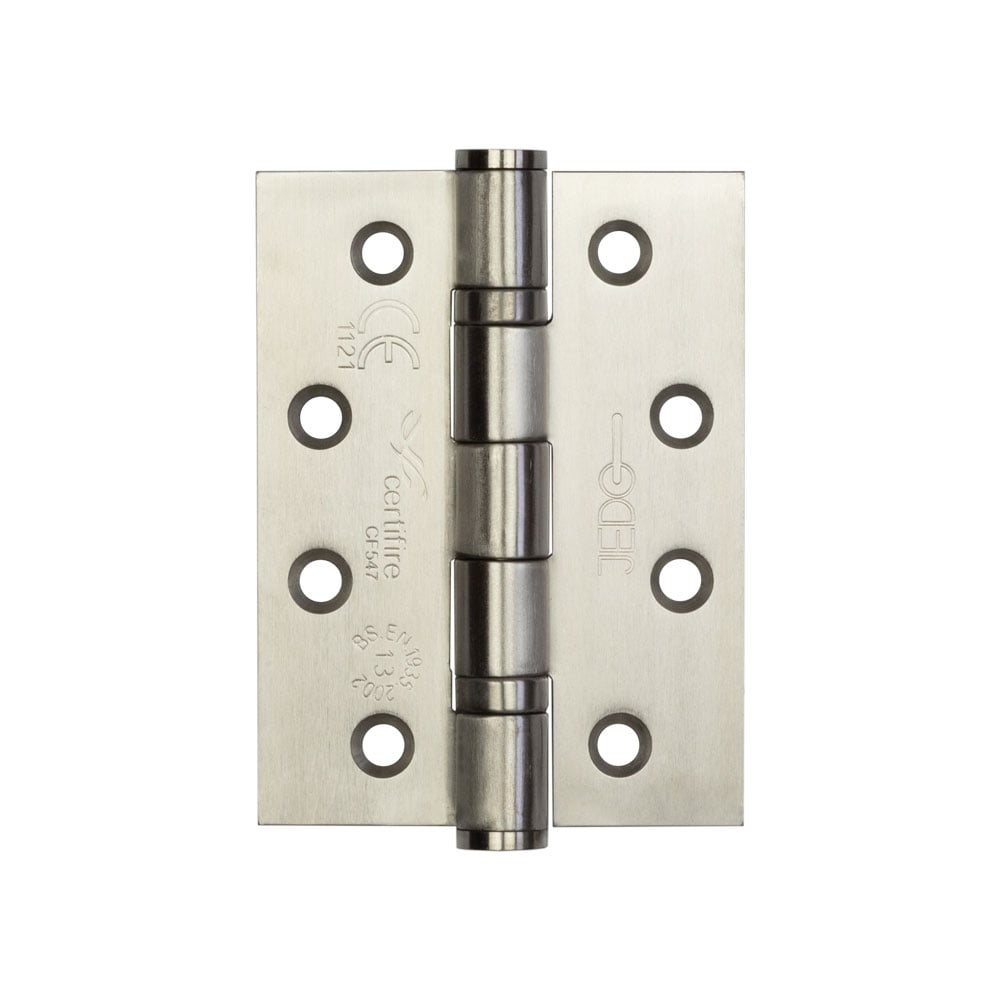

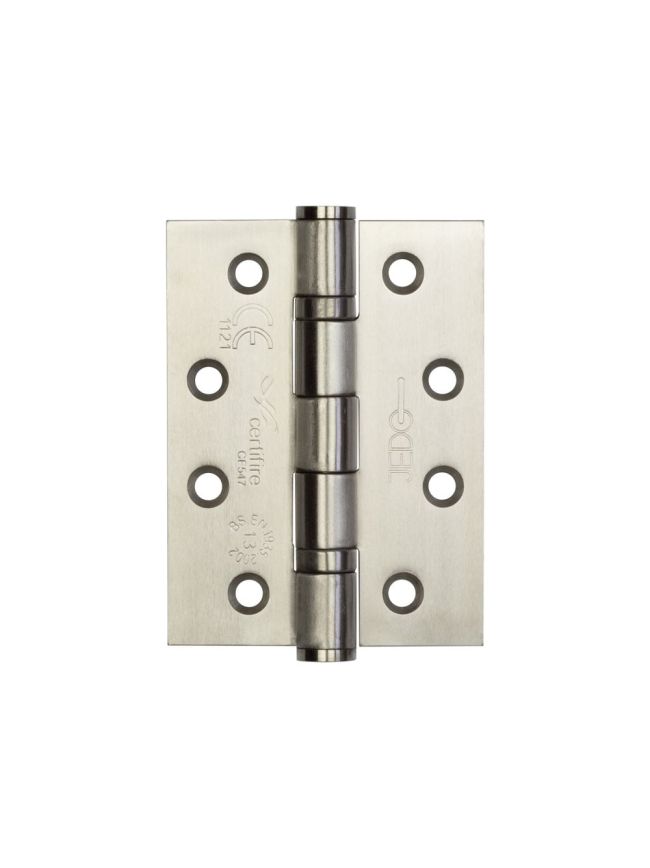

The Frelan J9507SSS Ball Bearing Hinge is a heavy-duty stainless steel hinge for demanding commercial doors. Built in premium Grade 316 stainless steel with a satin finish, it is Certifire approved, FD30/60 fire rated and supports doors up to 120kg (3 hinges).

KEY FEATURES

Type: Ball Bearing Hinge
Material Grade: 316 Stainless Steel
Finish: Satin Stainless Steel
Max Door Weight: 120kg (3 hinges)
Fire Rating: FD30/60
Certifire: Yes
Hinge Grade: 13
Corrosion Grade: 4
Mechanical Warranty: 10 Years
Use: Internal, Residential / Commercial
UKCA / CE: Yes / Yes
Fittings Included: Comes complete with 16 x wood screws (thread length: 28mm & thread diameter: 5mm)

DIMENSIONS

Height: 102mm
Width: 76mm
Knuckle: 14.5mm
Thickness: 3mm

Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.

Note: We recommend requesting a sample before installation to ensure compatibility and satisfaction.

To maintain compliance with the fire standard for these hinges,  it is recommended that you fit these with the relevant intumescent pack (GRA 1 & GRA 1.2)

STANDARDS & CERTIFICATIONS



Additional Information :
• Carry Weight : Up to 120kg with 3 hinges
• CE / UKCA : BS EN 1935
• Certifire : Yes
• Corrosion Grade : Grade 4
• Fire Rating : FD30/60
• Internal / External : Internal
• Knuckle Thickness : 14.50mm
• Leaf Thickness : 3mm
• Material : Stainless Steel
• Material Grade : 316g Stainless Steel
• Mechanical Cycles : 200,00 Cycles
• Mechanical Warranty : 10 Years
• Overall Size : 102 x 76mm
• Size : 102x76x3mm
