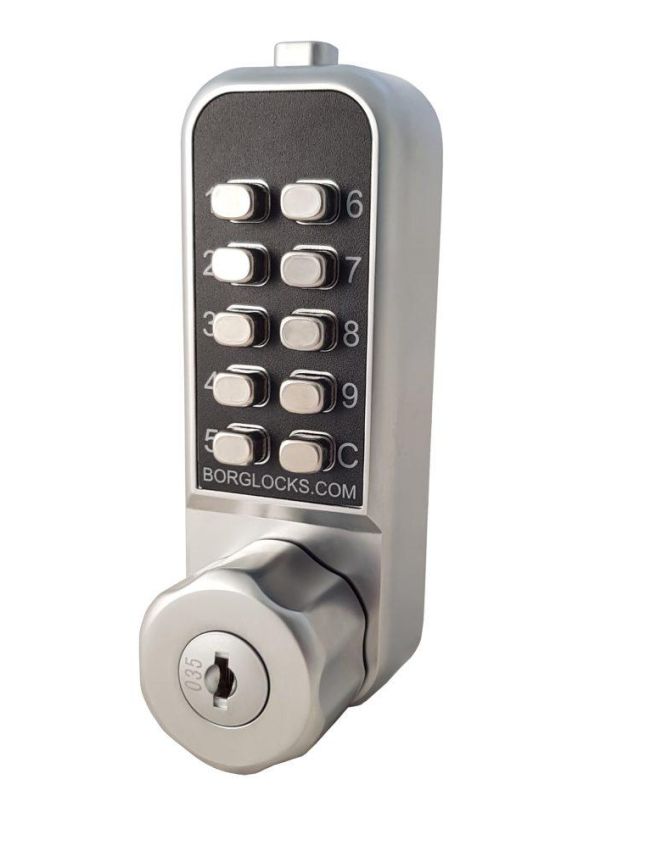

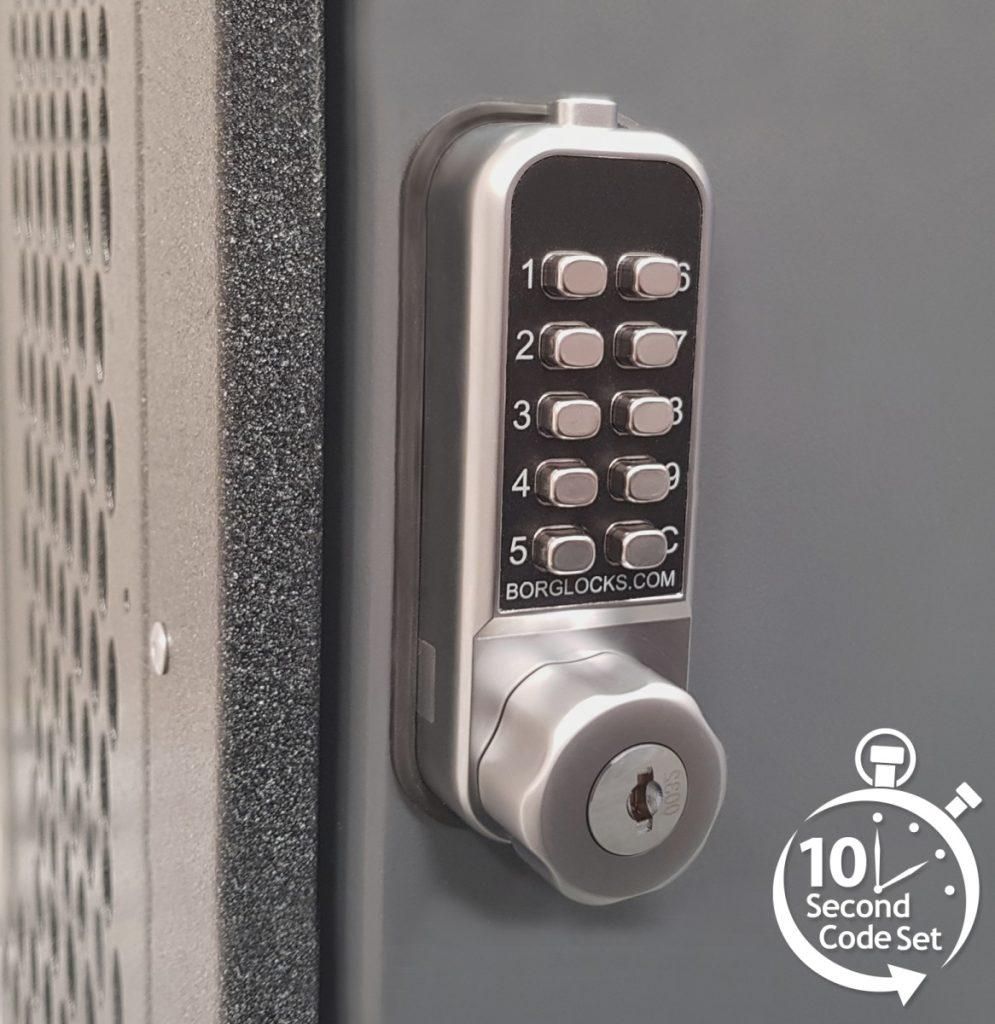

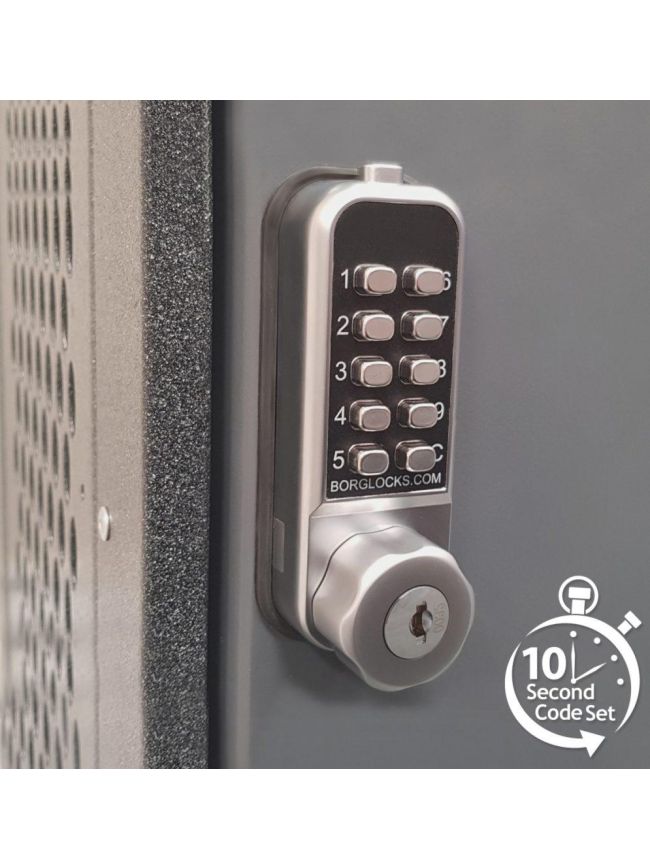

Borg BL1706 SC ECP - Mini Easicode Pro Vertical Cabinet Lock With Key Override - Knurled Knob, Inside Cam Turn Mechanism, Satin Chrome Finish

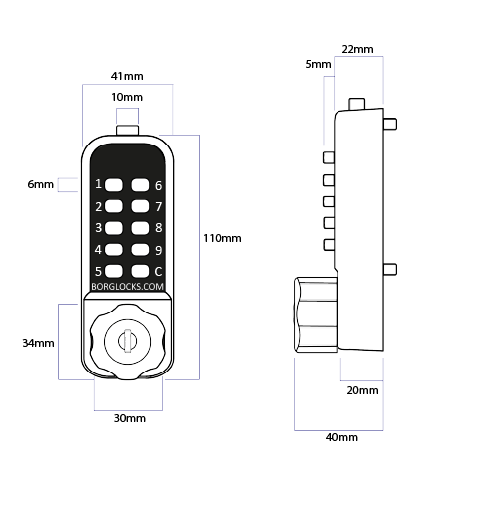

The BL1000 series is a range of compact (110x40mm) keypads, designed for metal cabinets, lockers and cupboards. They all feature our new ECP Easicode Pro coding chamber, allowing the code to be changed on site, quickly and securely. The BL1706 comes with a built-in key override function, allowing the ability to bypass the coding system with a key provided.

The BL1706 comes with a standard compact keypad, internal cam mechanism and fixings to mount onto applications between 2 -25mm thick. An optional code change shroud is available (part no. S101) to obscure and cover up the code change button.

As standard, these are supplied with an off-set and straight cam to suit many different styles and applications.

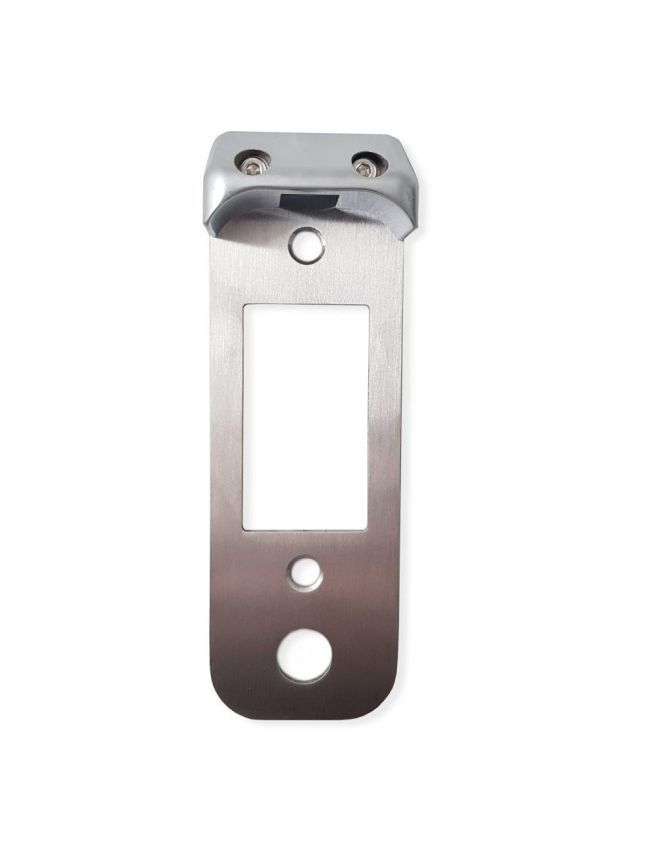

• ECP with key override (x 2 keys) - Easicode Pro - on door code change via buttons. Know the code - change code. Option to block ECP function with S101 - Anti-tamper code change button shroud.

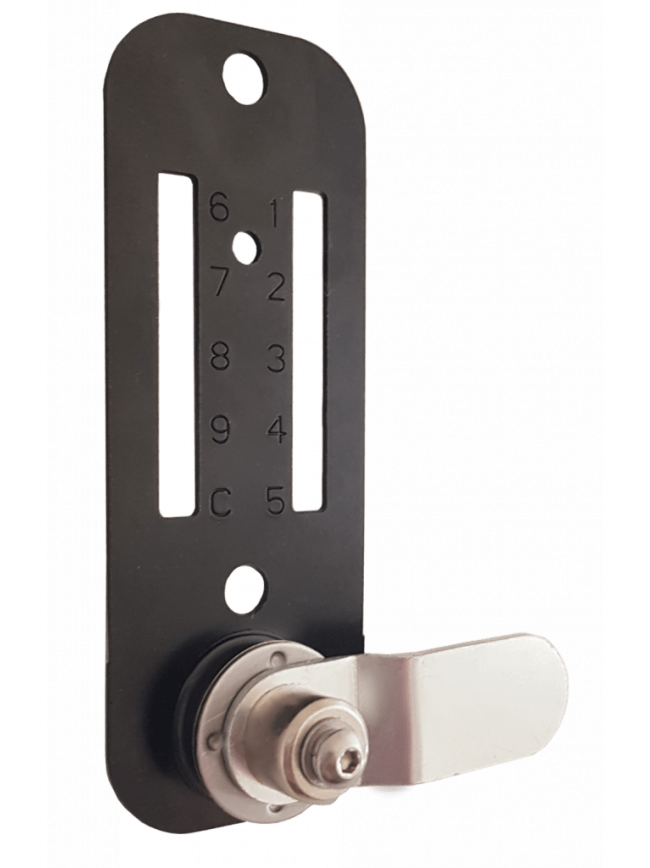

• Suitable for multiple types of cabinet, letter box, small enclosures or repeat code locker use. Unique operation and design (inc moveable slotted back plate exposing set code only available when door open) to allow access to codes without removal from door
• Mechanical (no battery required) keypad
• Supplied with flat and cranked cams. 60mm spindle
• Door material thickness from 2mm > 45mm
