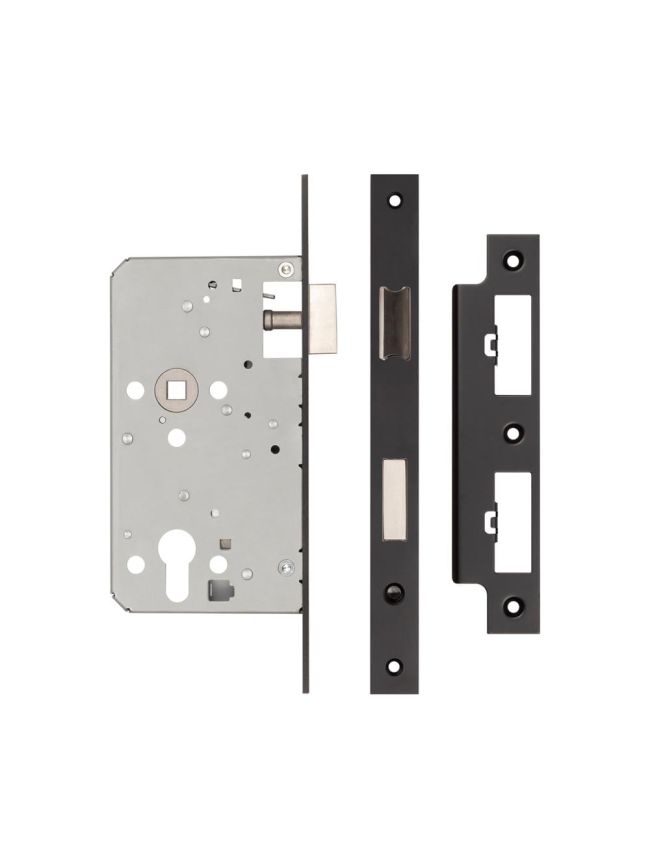

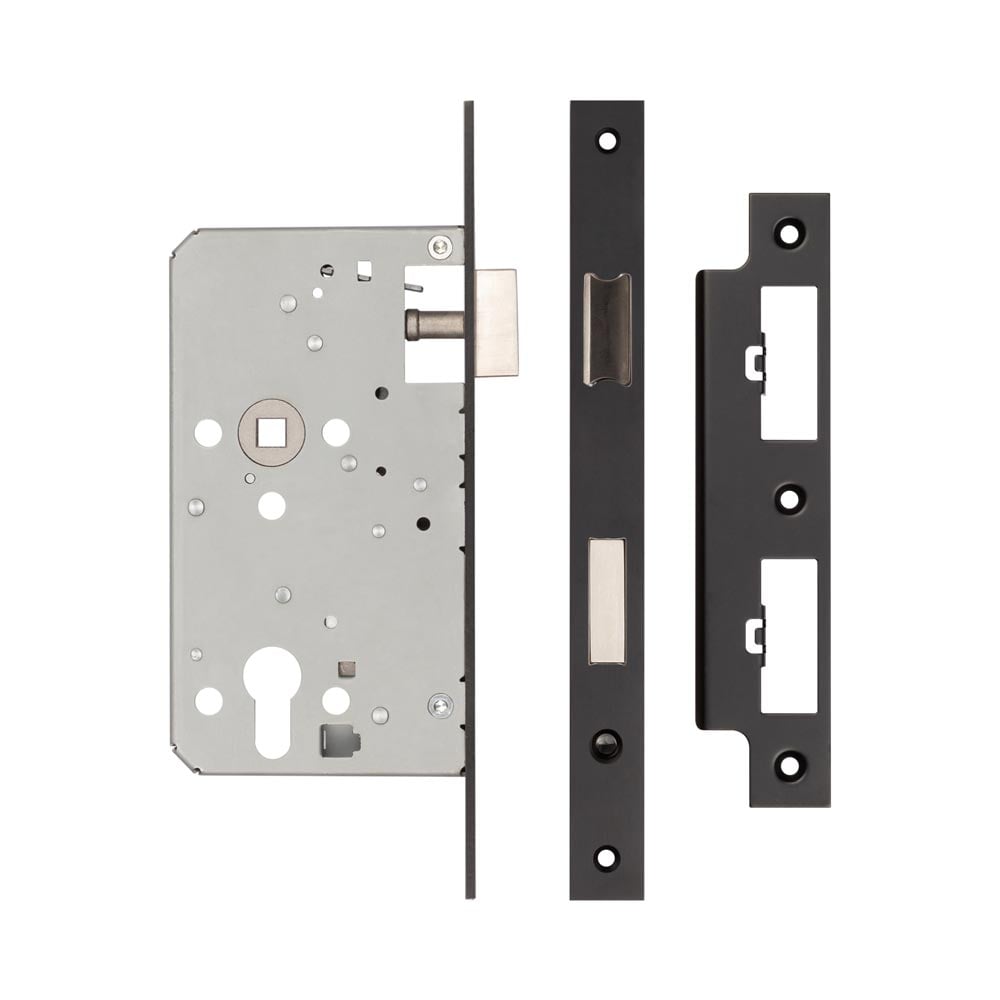

72mm Black Din Euro Escape Lock 60mm Backset - By Frelan Hardware - JL-DE60MB
72mm Black Din Euro Escape Lock 60mm Backset - By Frelan Hardware - JL-DE60MB

72mm Black Din Euro Escape Lock 60mm Backset - By Frelan Hardware - JL-DE60MB

Item Code: JL-DE60MB
Frelan Hardware is a respected name in architectural ironmongery, known for delivering high-quality, stylish hardware solutions for over 40 years. Please ask about our “VALUE FOR MONEY PROMISE” where we will beat ANY like-for-like product prices. If you think you have a better equivalent offer, please get in touch and we’ll beat it!
Frelan Hardware
£22.78(Inc. VAT)£18.98(Ex. VAT)
Order
Total Price:£22.78£18.98
Quantity
Add to cart
Add to wishlist
Remove from wishlist
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
  • Overview
  • Documentation
Overview

The Frelan JL-DE60 Escape Lock provides safe egress for commercial doors while maintaining security. The Grade 304 stainless steel body is FD30/60 fire rated and Certifire approved, with square or radius forend options for a clean, coordinated finish.


KEY FEATURES


Material Grade: 304 Stainless Steel
Finish: Black
Forend Options: Square (JL-DE60MB) / Radius (JL-DE60RMB)
Sprung: Yes
Fire Rating: FD30/60
Certifire: Yes
BS EN 179: Yes
UKCA / CE Marked: Yes
Corrosion Grade: 3
Mechanical Warranty: 15 Years
Use: Internal / External (Residential / Commercial)
Suitable Door Thickness: 35–54mm


DIMENSIONS


Case Height: 235mm
Backset: 60mm
Forend Width: 22mm
Forend Height: 145mm


Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.


To maintain compliance with the fire standard for these hinges,  it is recommended that you fit these with the relevant intumescent pack (GRA 9 & GRA 9.2)

STANDARDS & CERTIFICATIONS
UKCA CertificationCE CertificationFire Door 30 60 Certification



Additional Information :
• Backplate Dimension : 235mm
• CE / UKCA : BS EN 179
• Certifire : Yes
• Corrosion Grade : Grade 4
• Fire Rating : FD30/60
• Internal / External : Internal / External
• Material : Stainless Steel
• Material Grade : 304g Stainless Steel
• Overall Size : 165 x 90mm
• Size : 60mm backset radiused
• Suitable Door Thickness : 35 - 54mm
